M8T RAWX Logger (WR/FL Box, 10000mAh LiFePo4/A123, Dual Power)
Weather resistant M8T logger with 16GB storage and 10000mAh LiFePo4 batteries (A123 cells), redundant power: 950 EUR *
UBX-M8T-RAWX-Log-LFP10K-A123-DPwr-FL-WR
Photos:

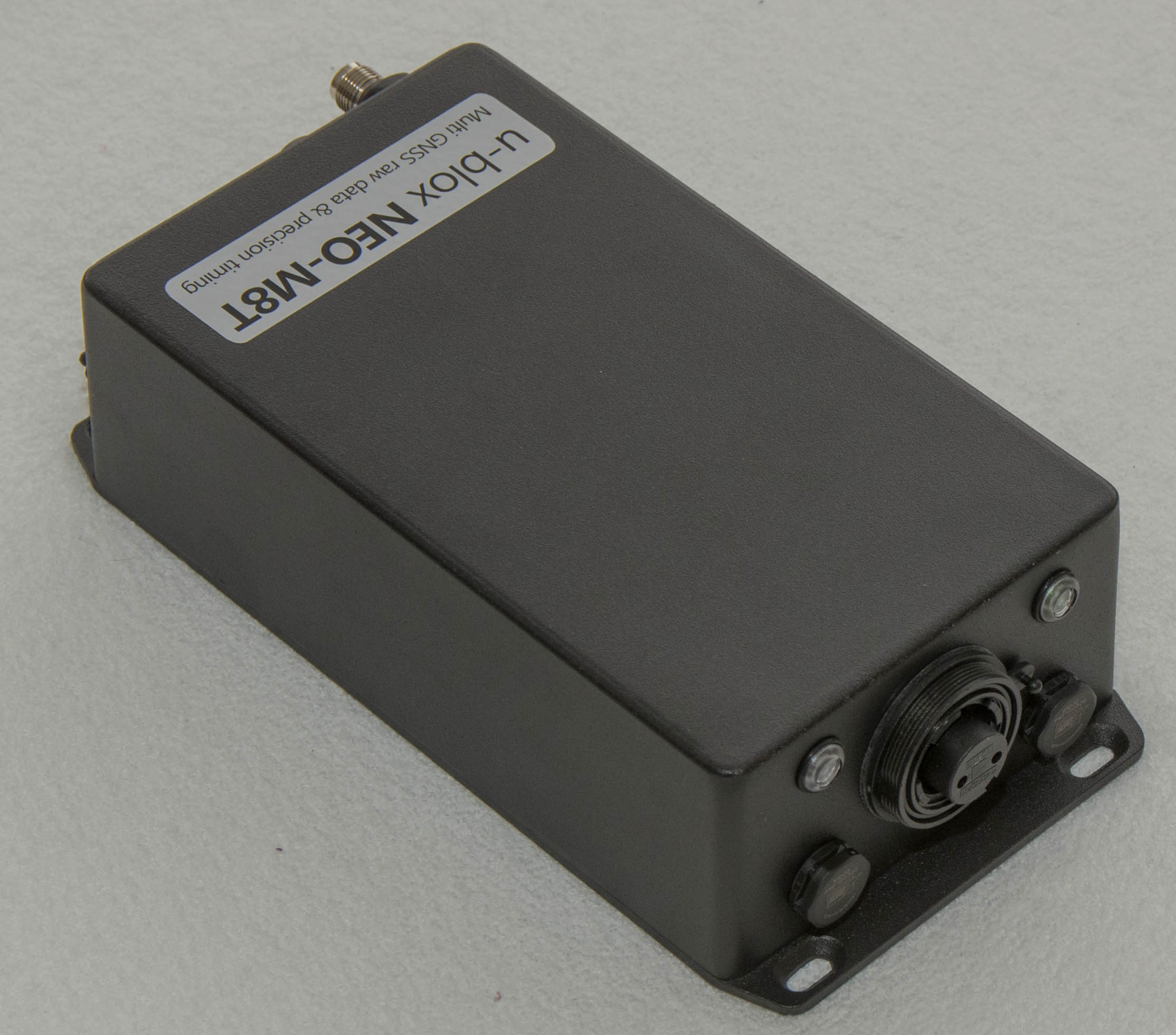

M8T-Log-LFP10K-A123-DPwr (1)
,

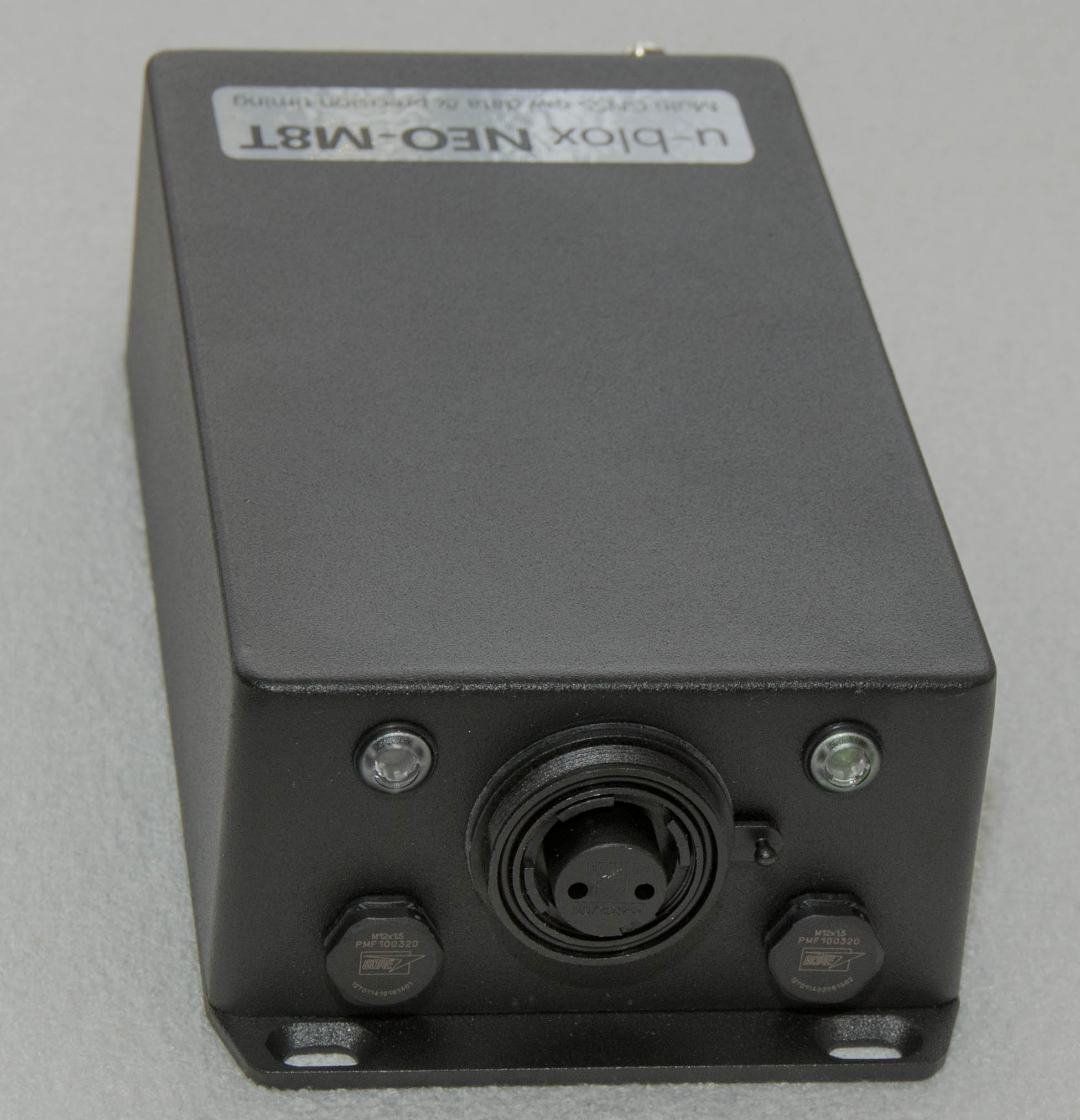

M8T-Log-LFP10K-A123-DPwr (2)
,

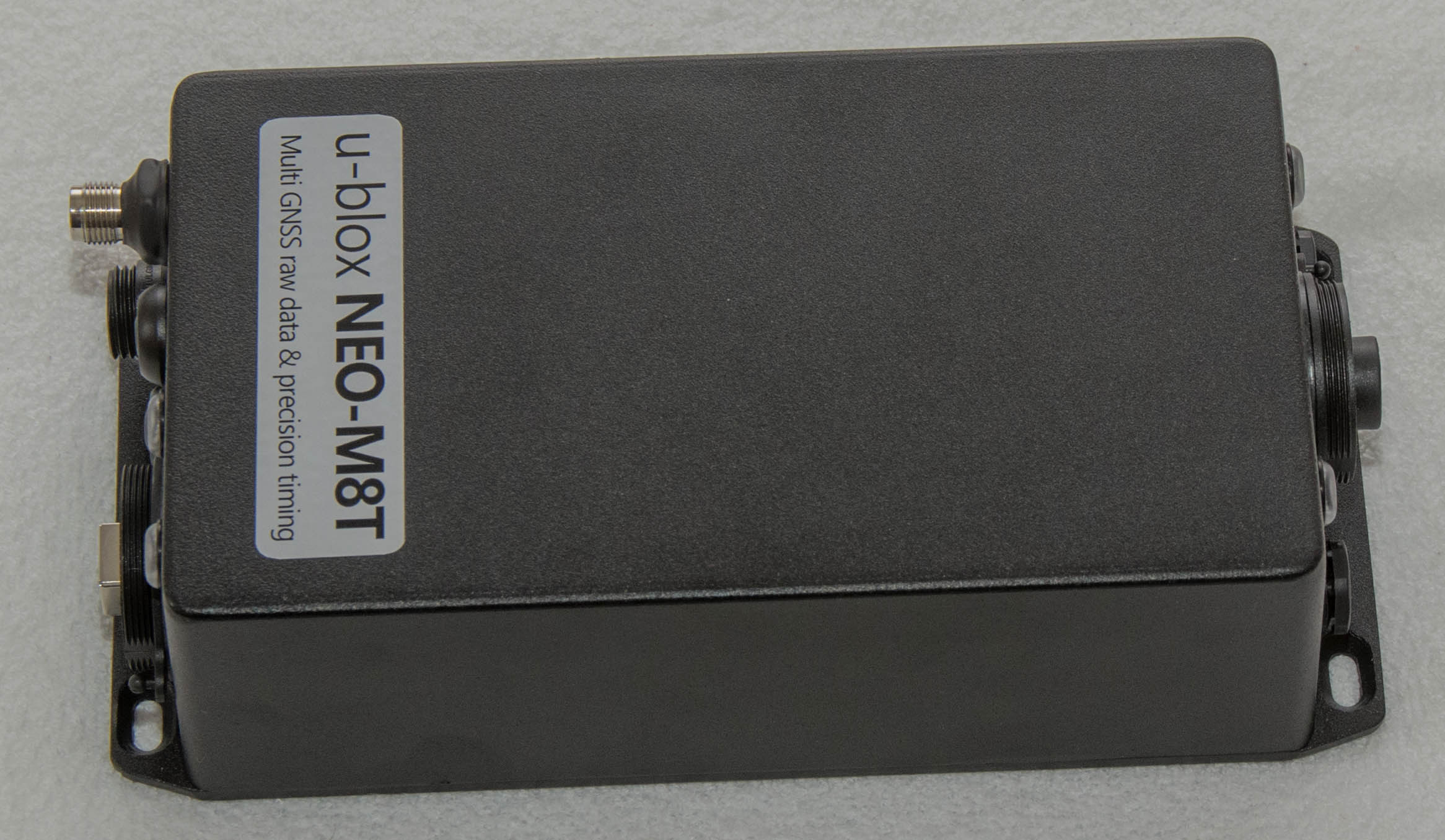

M8T-Log-LFP10K-A123-DPwr (3)
,

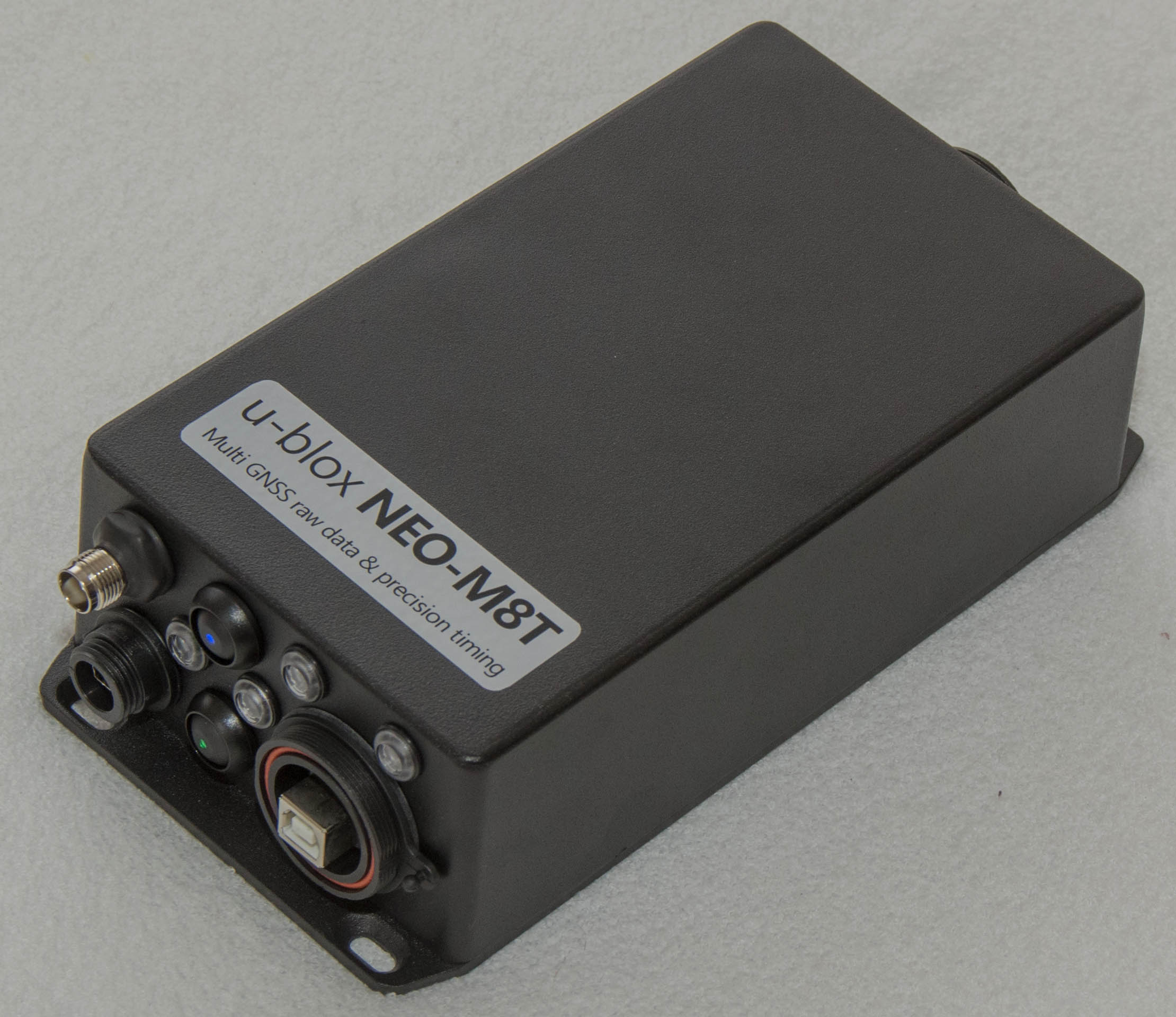

M8T-Log-LFP10K-A123-DPwr (4)
,

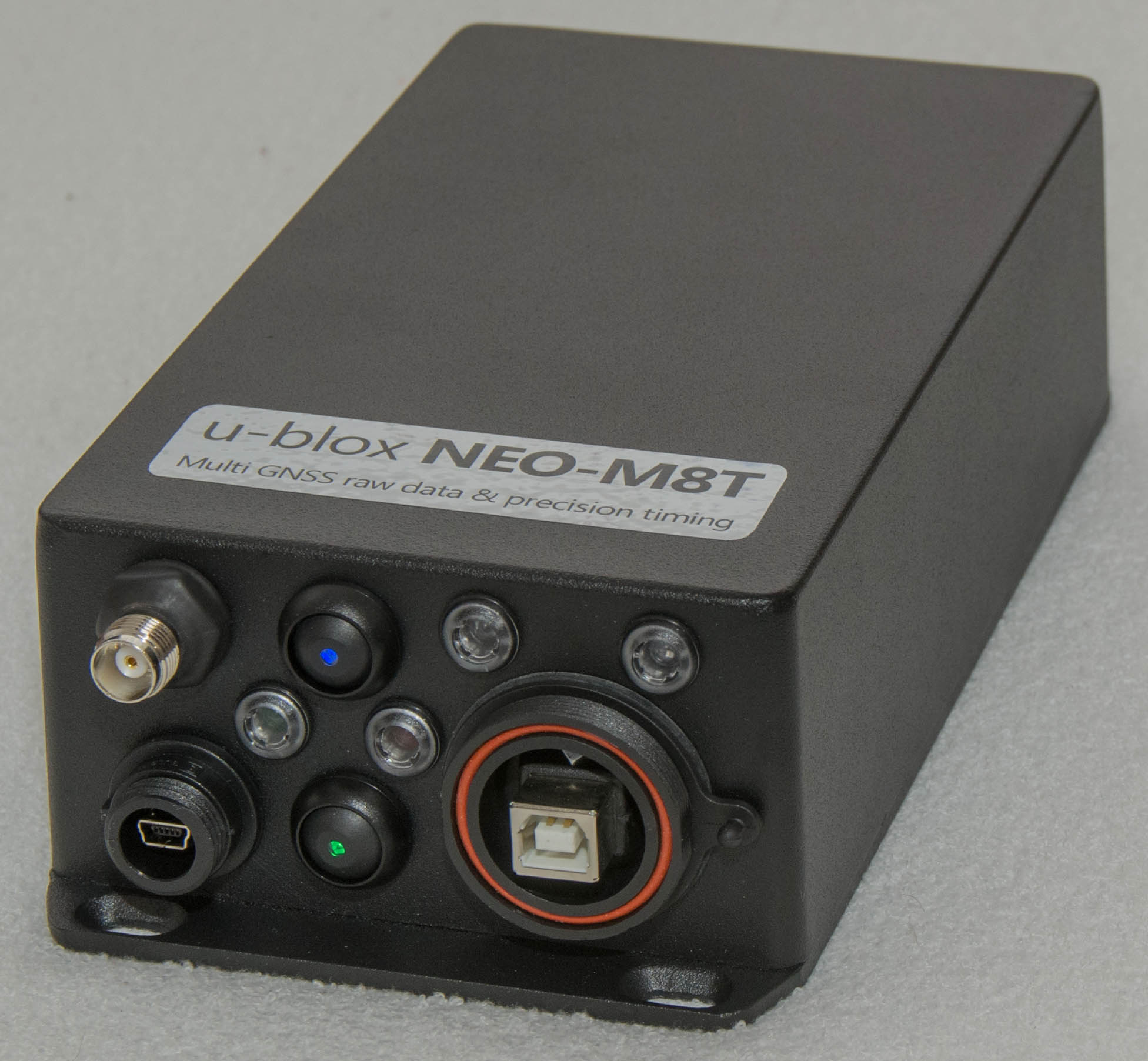

M8T-Log-LFP10K-A123-DPwr (5)
,

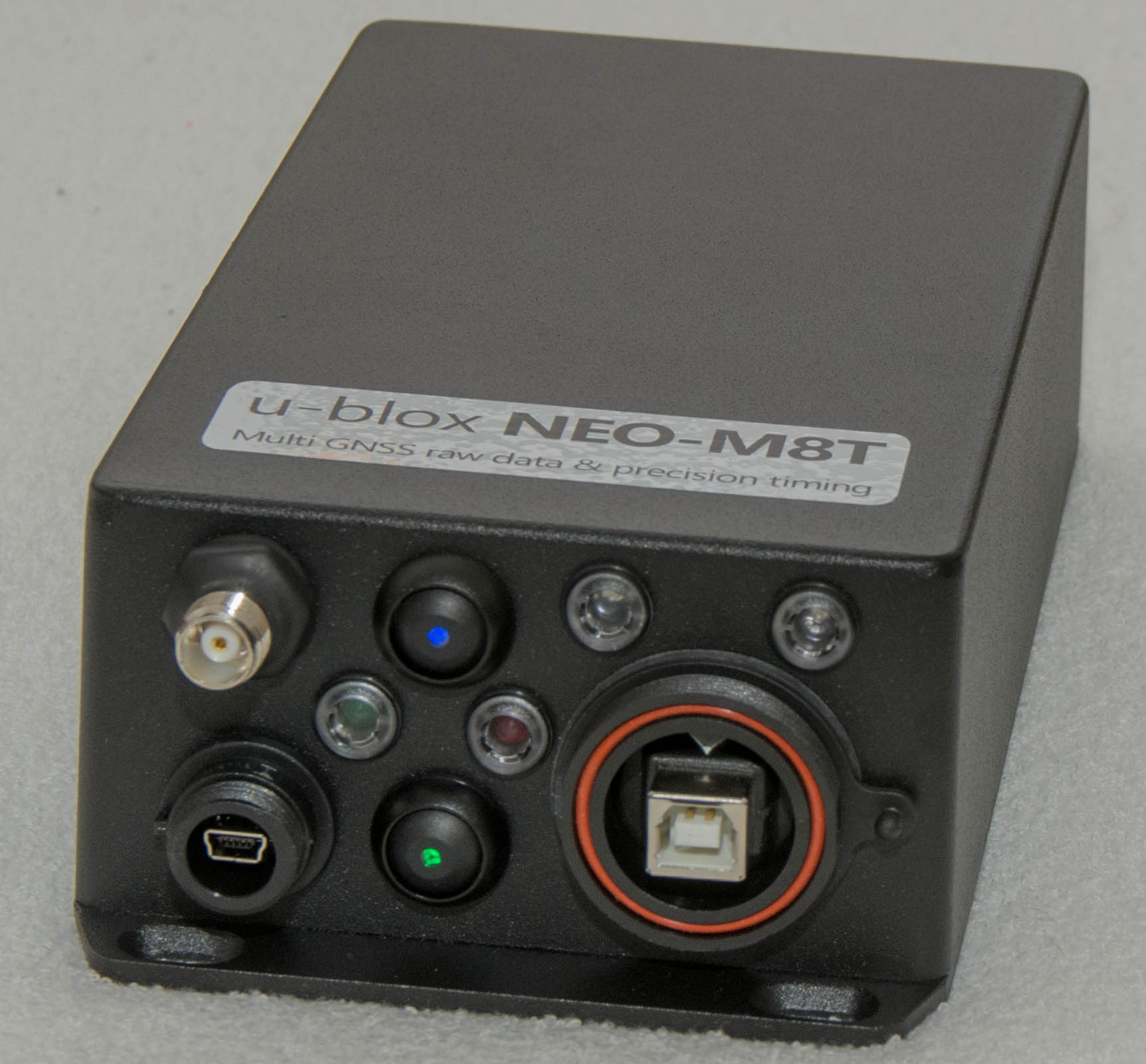

M8T-Log-LFP10K-A123-DPwr (6)
,

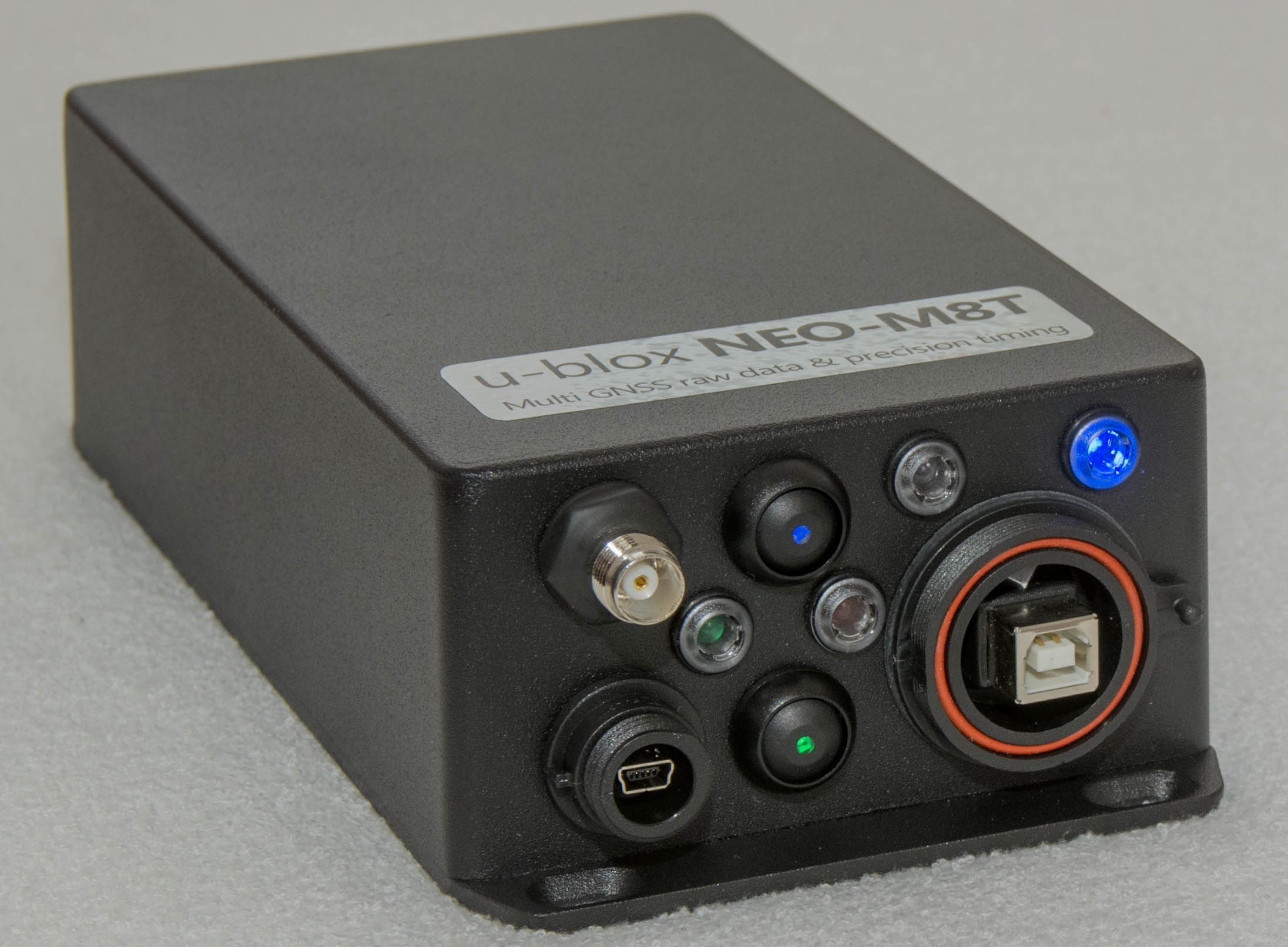

M8T-Log-LFP10K-A123-DPwr (7)
,

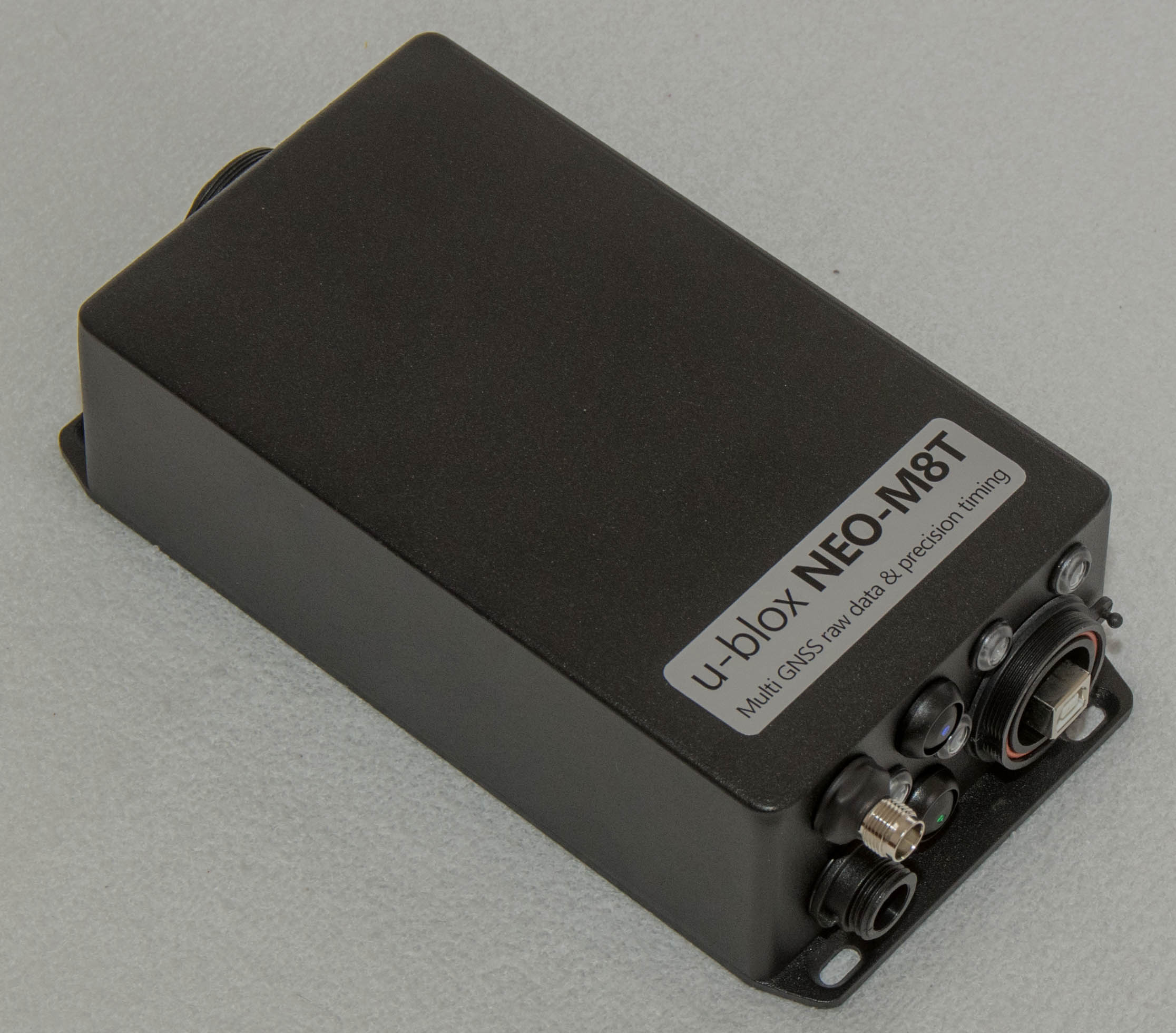

M8T-Log-LFP10K-A123-DPwr (8)
Weather resistant GNSS raw data logger device in flanged lid metal enclosure
1590WR1FLBK*
, based on the
RTKLIB*
ready (UBX-RXM-RAWX and UBX-RXM-SFRBX as u-blox official output messages for raw observation data) concurrent GNSS module
u-blox NEO-M8T*
10Ah LiFePo4 battery juice (
A123 doped Nanophosphate*
) with additional cell protection and fully automatic 2A charging circuitry, highly efficient voltage regulators (
TPS63060*
), additional LED controls for log file writing activity, PPS (1 Hz time pulse when GNSS reception is OK) as well as low battery warning, separate switches for GNSS receiver and data logger (thus GNSS can be running independent from logging)
Device assembling with tough and high-grade components (for instance
Amphenol MUSB jacks*
and
IP 65 rated switches*
and so on), GNSS antenna connector as TNC jack (more rugged)
Power supply voltage for external GNSS antenna with default 3.3 VDC, but as an upgrade option also with 5, 9 or 12 VDC possible, for instance to use already existing antenna models (depending on custom option with an extra charge of 10-20 EUR)
Example data: simultaneous raw data recording of two NEO-M8T in about 2 m distance between their antennas (NovAtel GPS-701-GG resp. Tallysman TW3400,
ZIP archive file
)
Price information
* : All prices are exclusive of VAT as well as shipping costs
Shipping from Germany abroad usually corresponds exactly to the current prices of
