u-blox M8T Multi-GNSS RAWX-Logger (WR/FL Box, 13200mAh LiPo)
Weather resistant RAWX+SFRBX logger of the u-blox NEO-M8T with 16GB data storage and 13200mAh LiPo batteries: 800 EUR *
UBX-M8T-RAWX-Log-LP13K-FL-WR
New manufacturing option:
enclosures in customized colors
Photos:

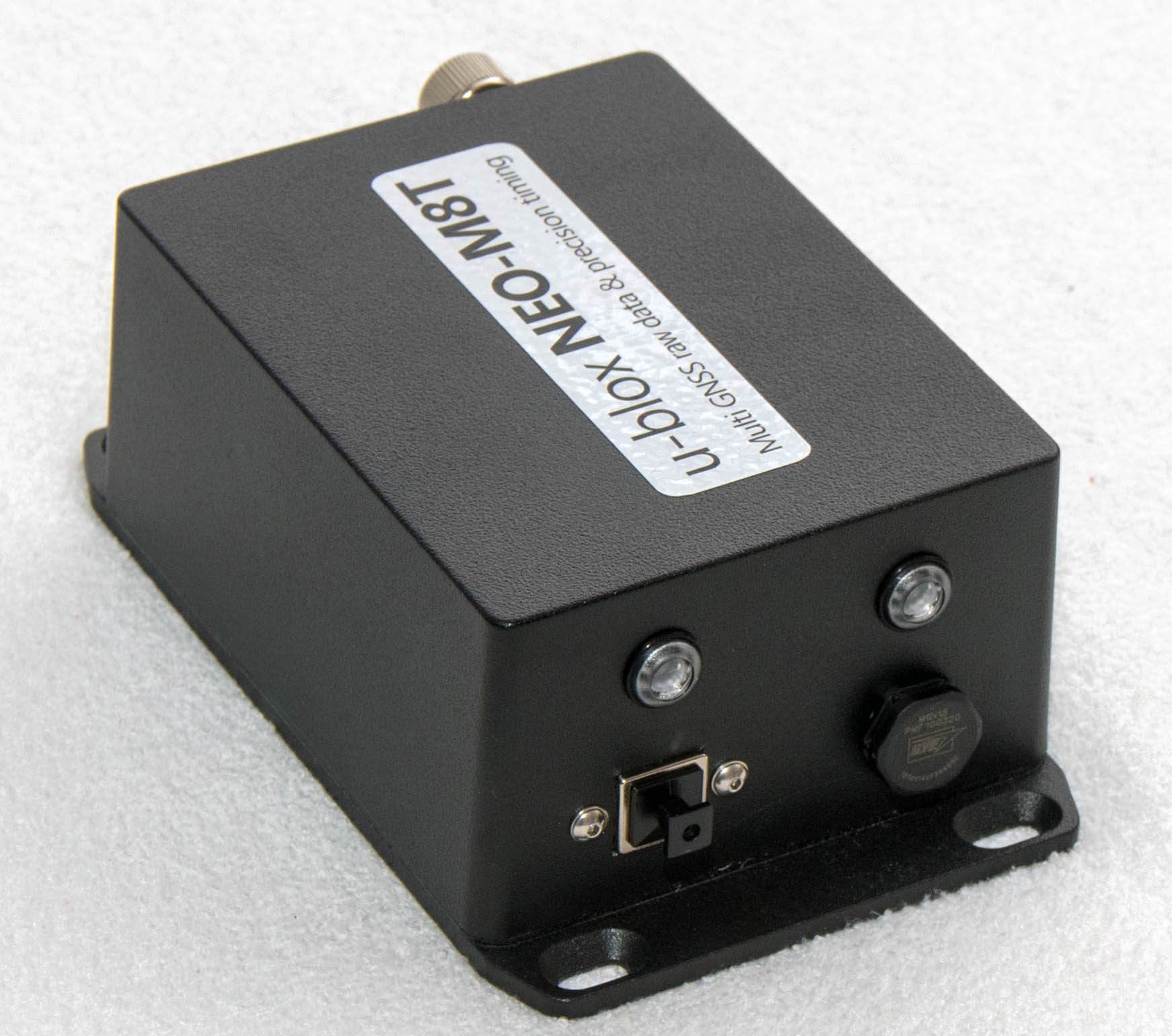

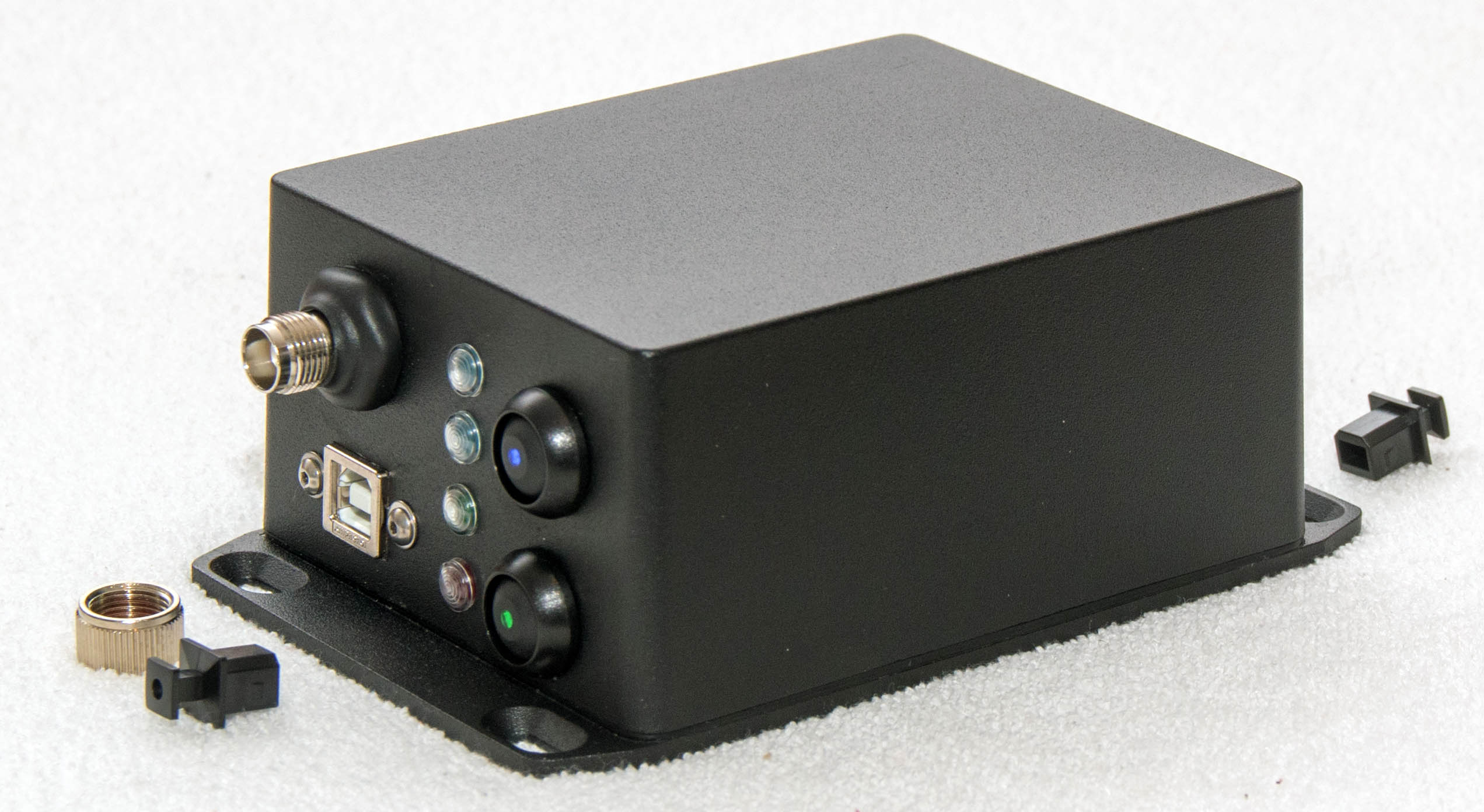

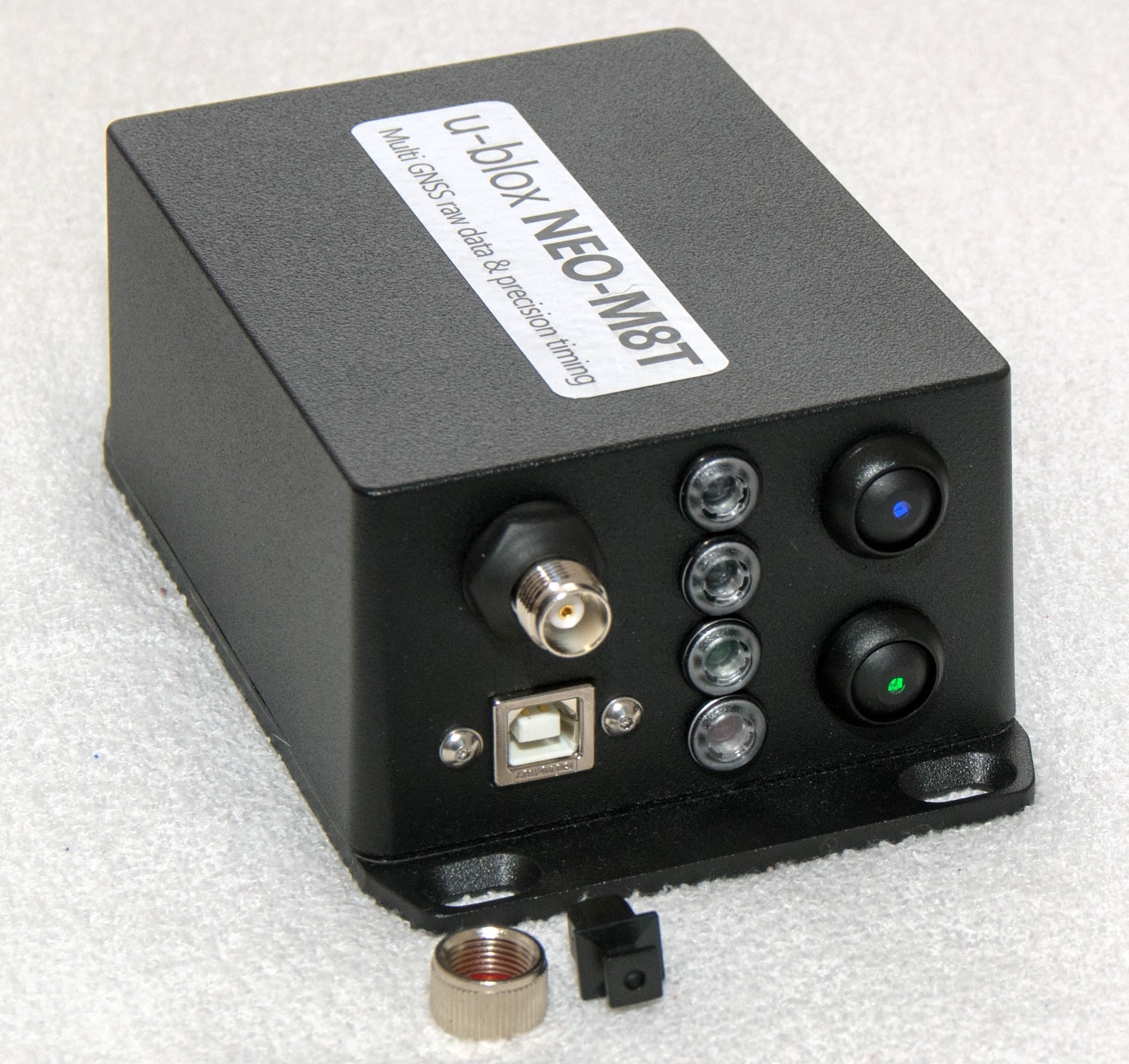

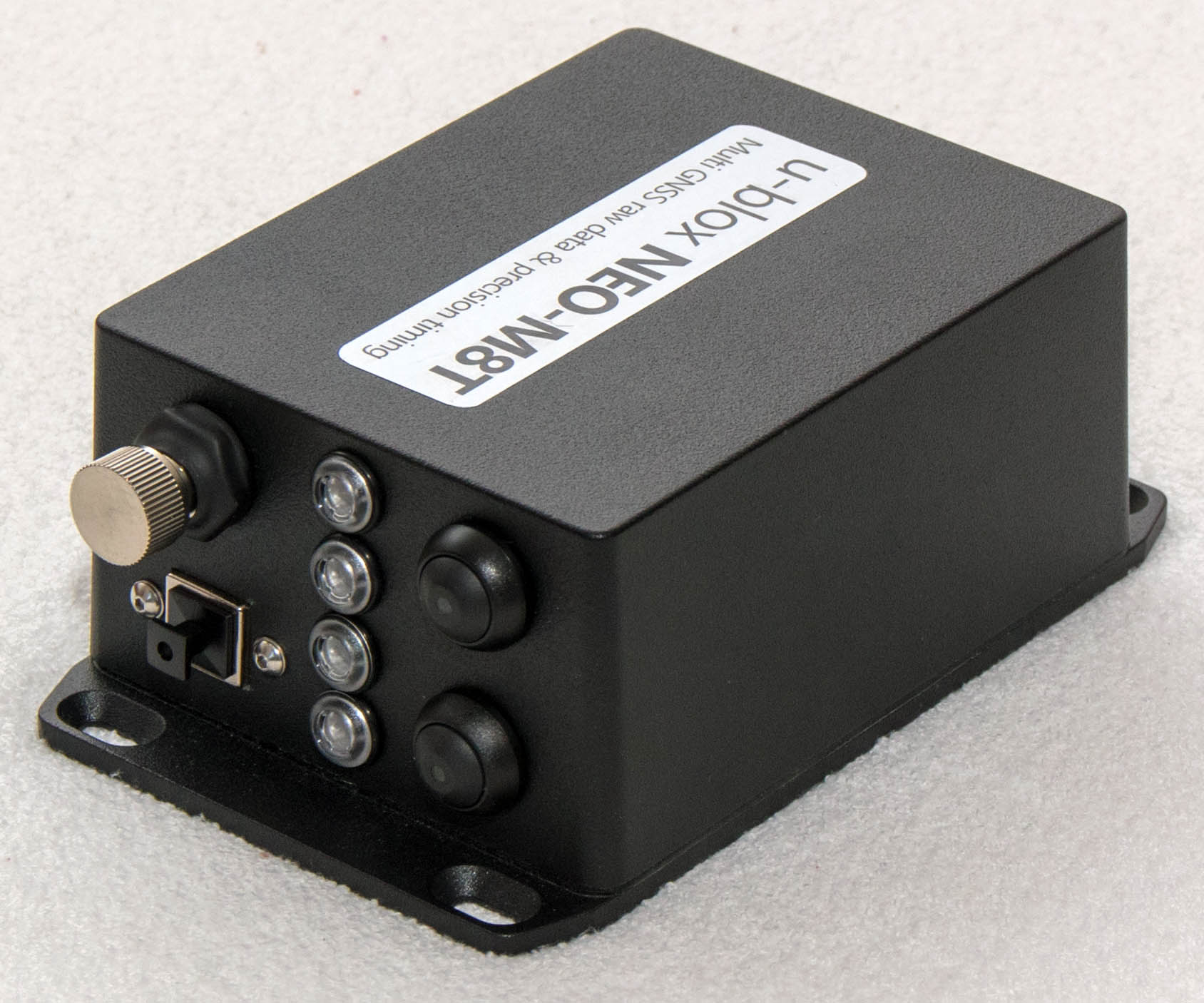

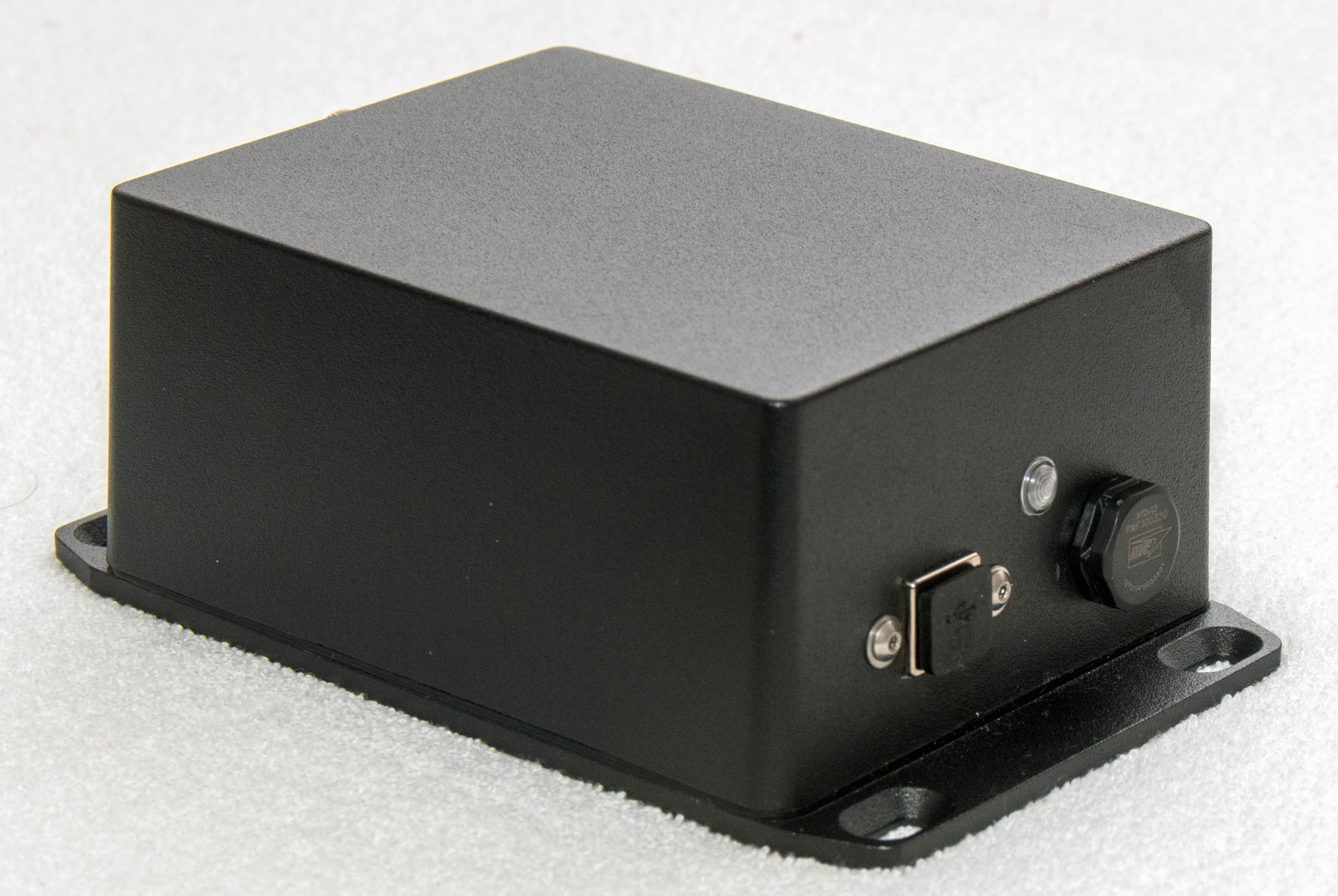

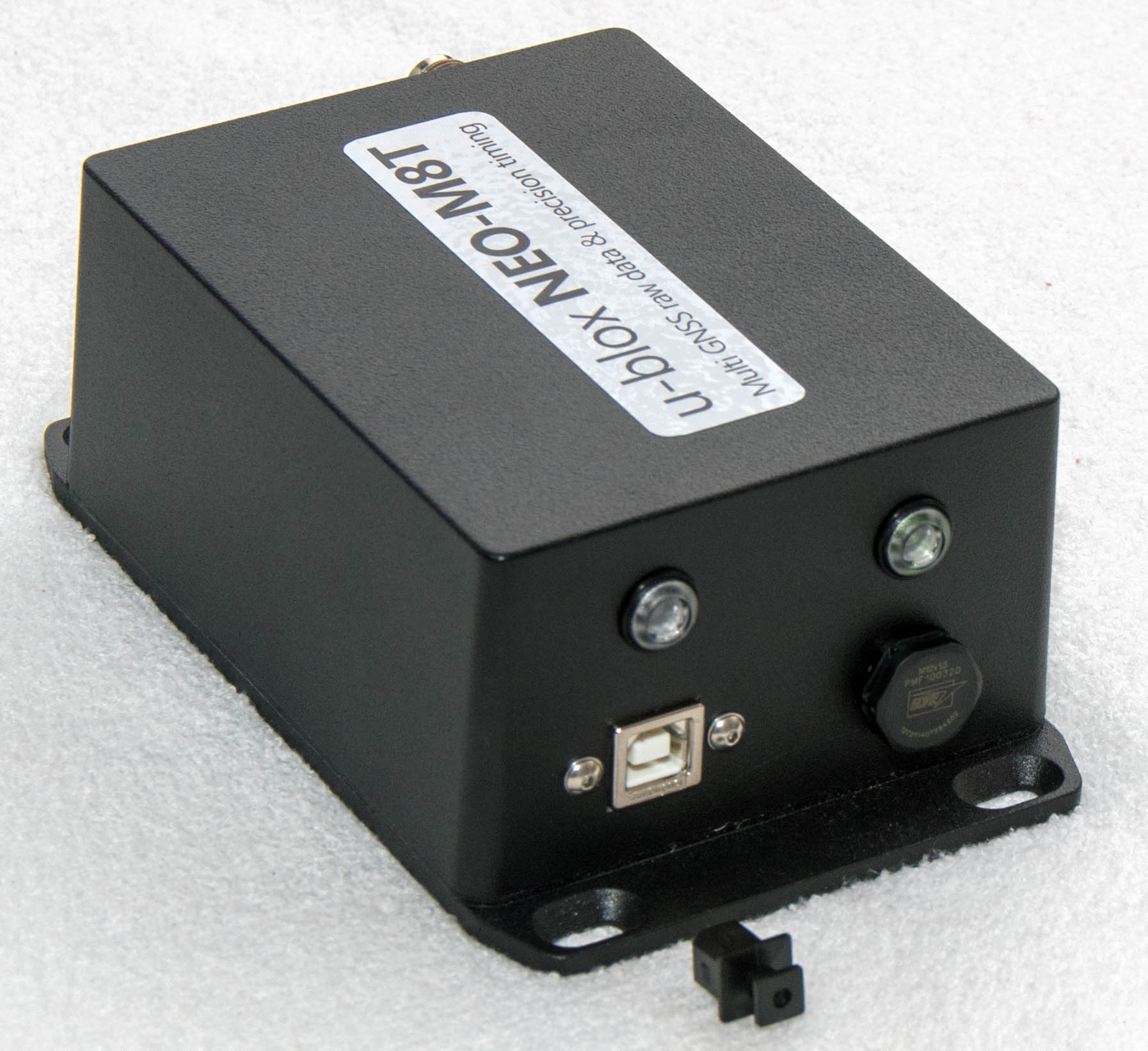

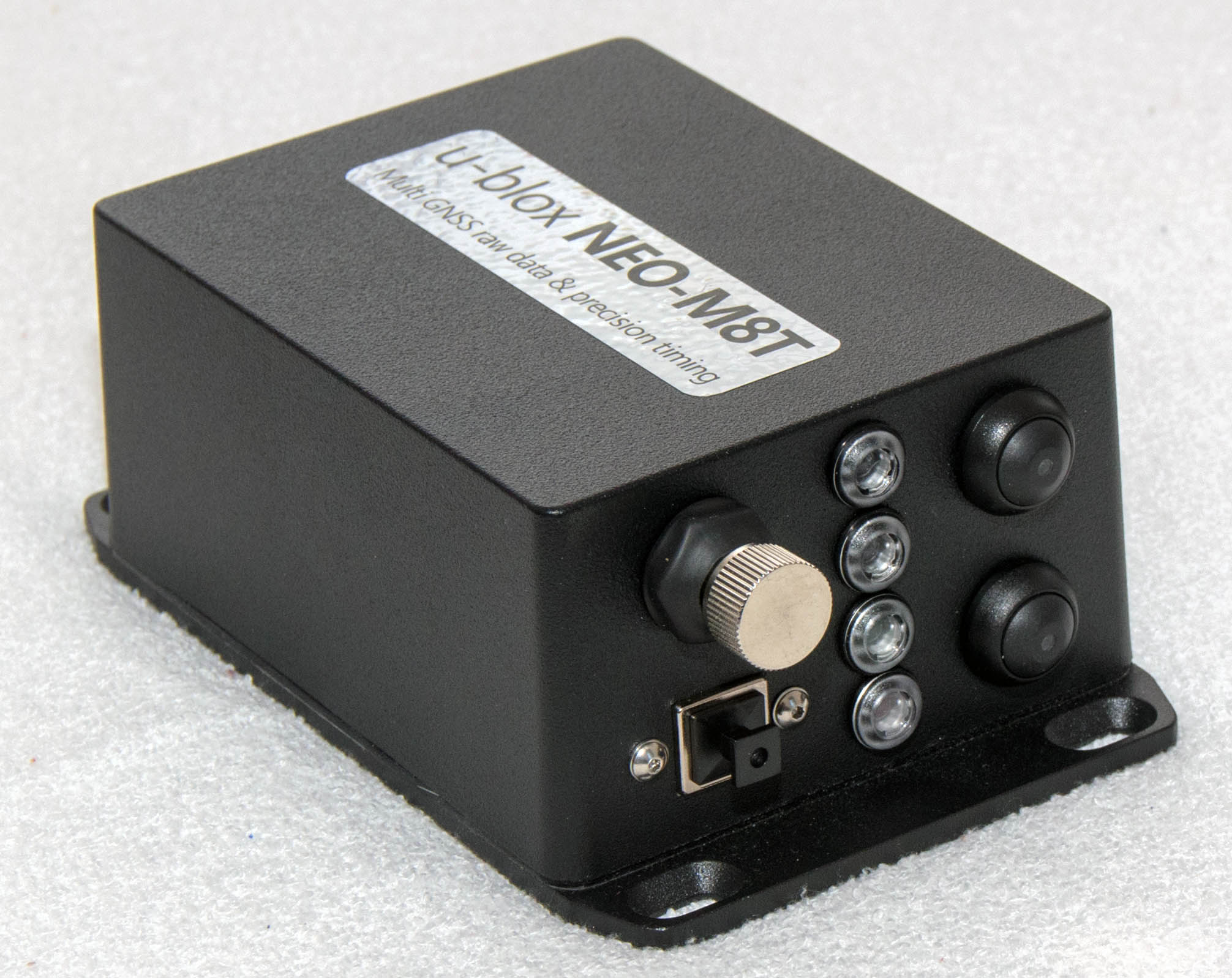

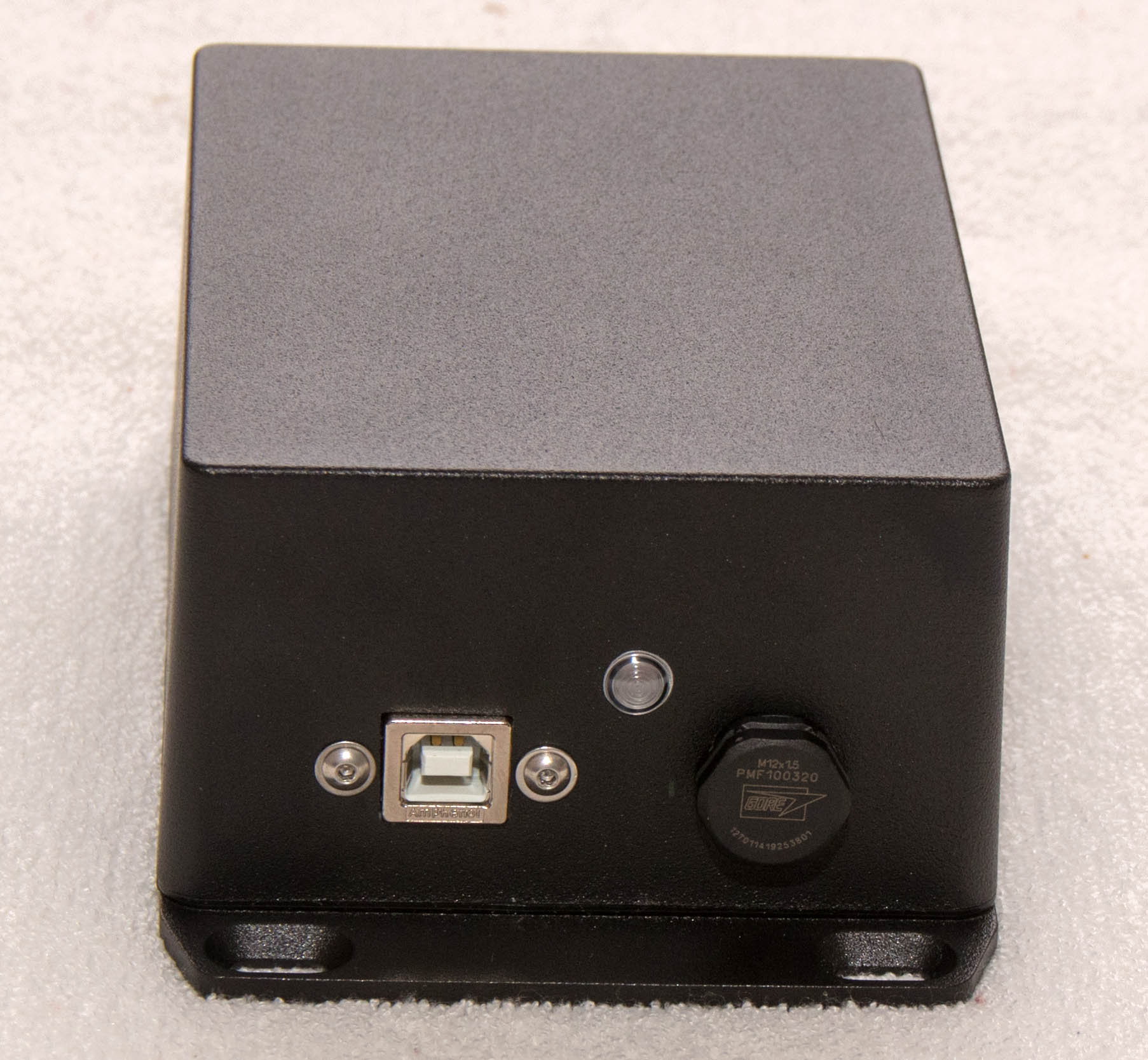

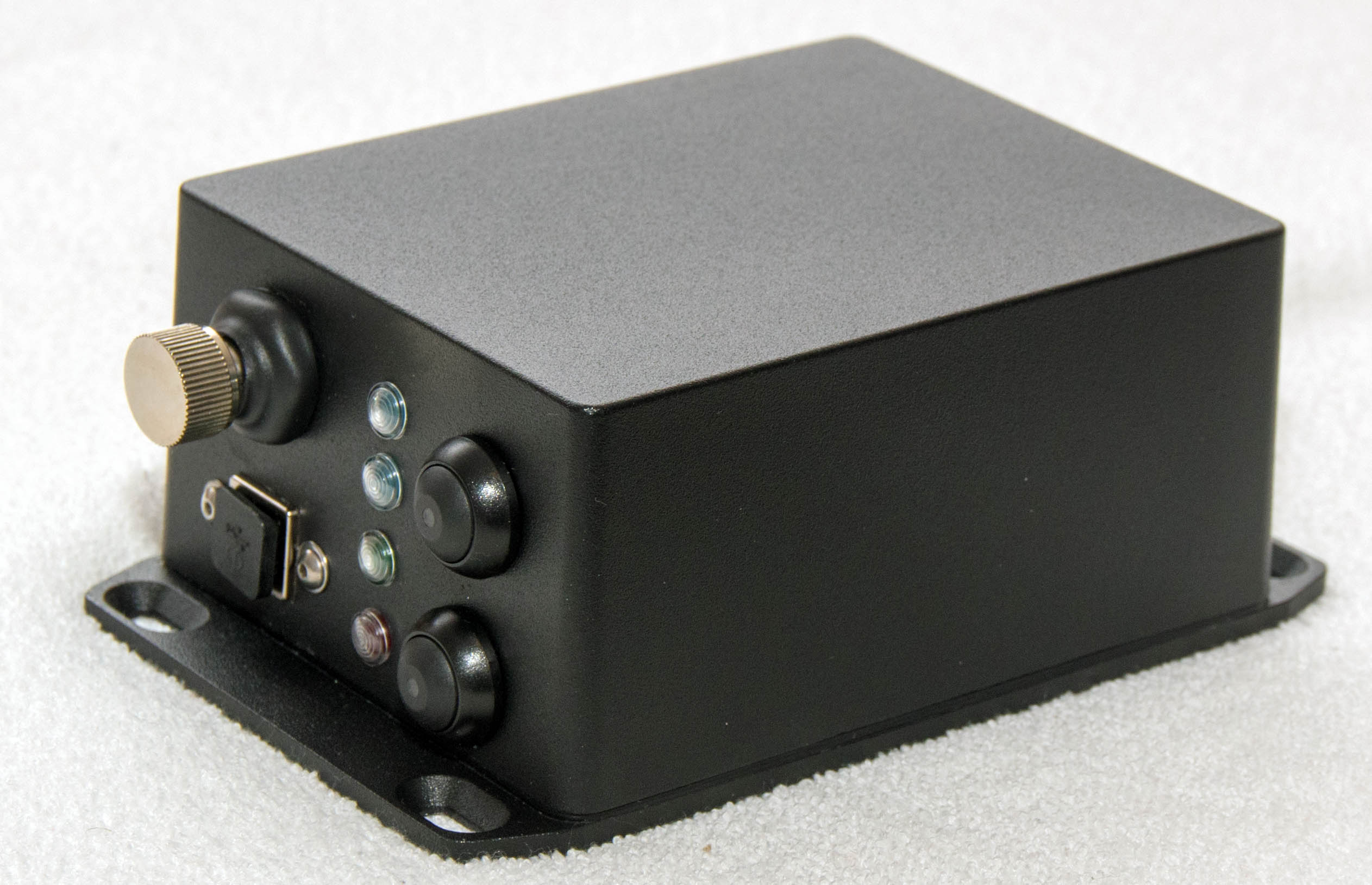

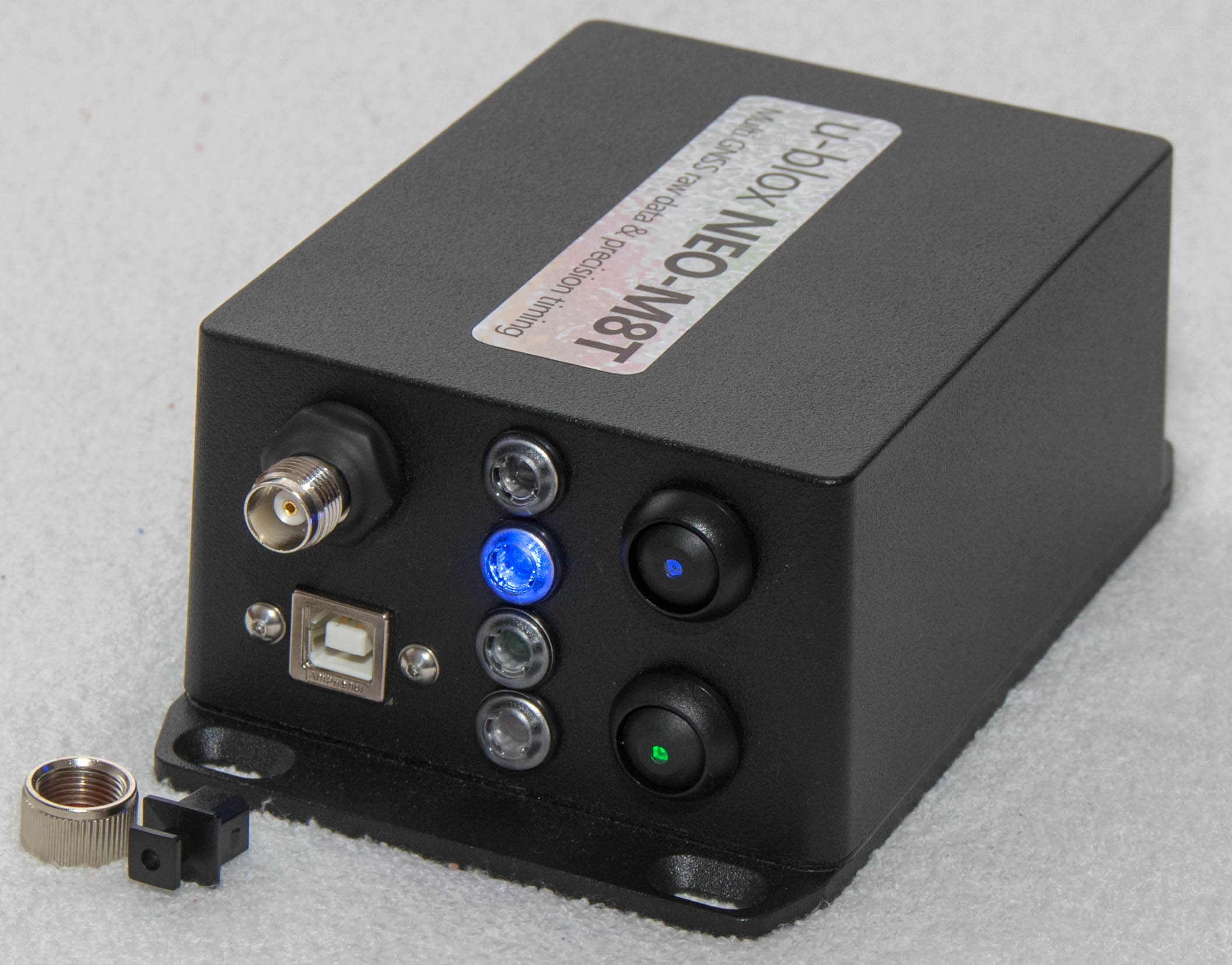

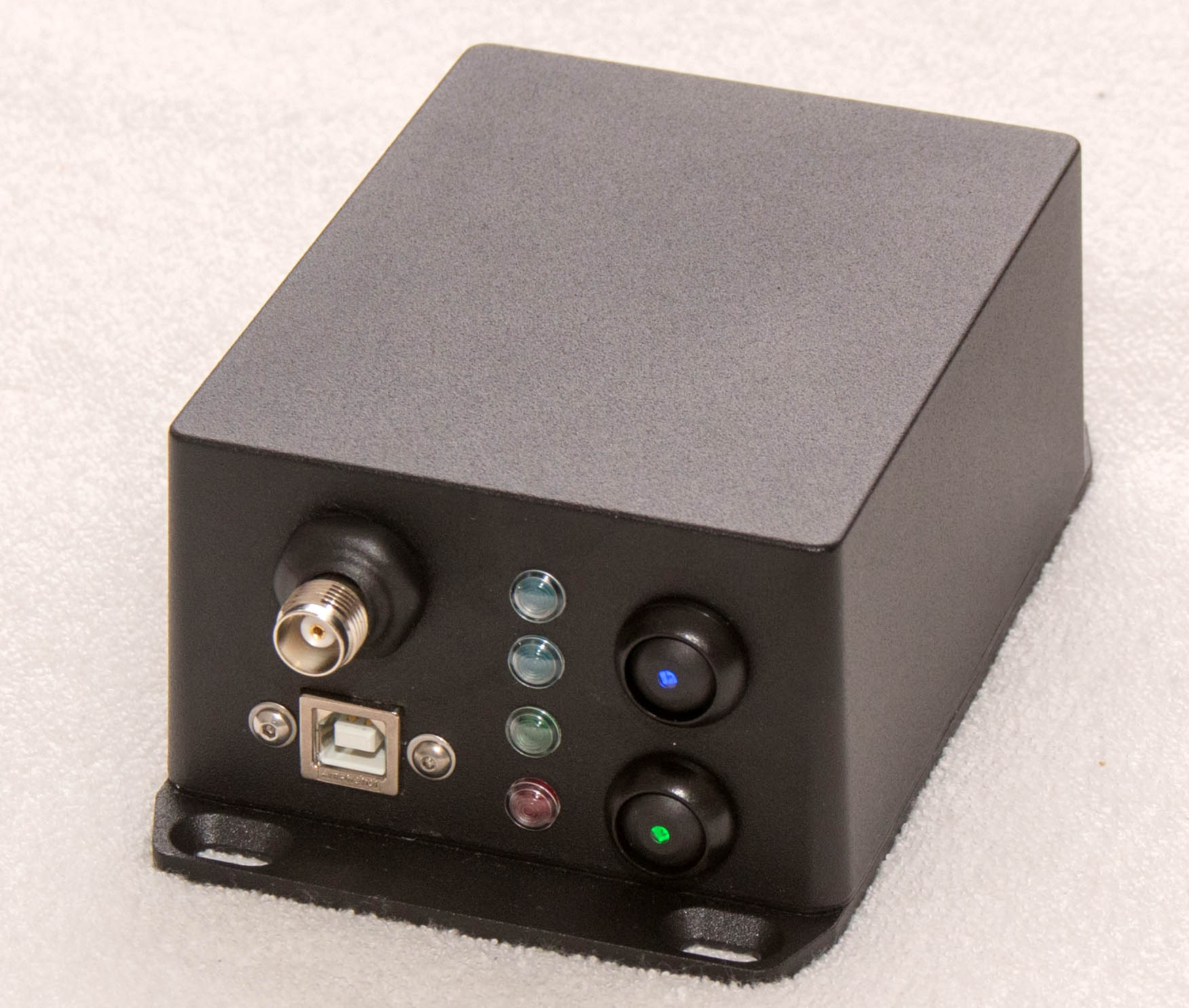

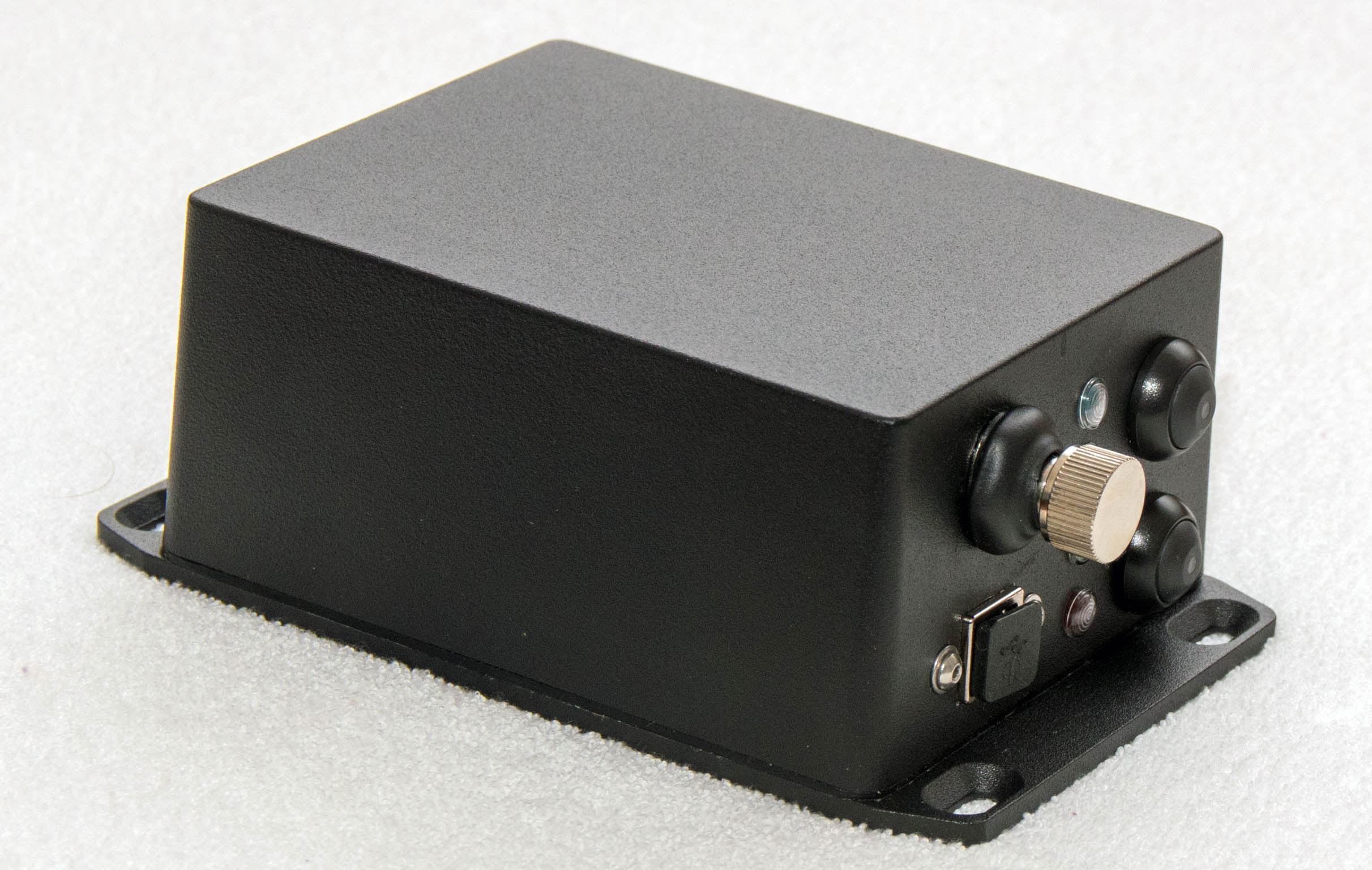

M8T-Logger (1)
,
M8T-Logger (2)
,
M8T-Logger (3)
,
M8T-Logger (4)
,
M8T-Logger (5)
,
M8T-Logger (6)
,
M8T-Logger (7)
,
M8T-Logger (8)
,
M8T-Logger (9)
,
M8T-Logger (10)
,
M8T-Logger (11)
,
M8T-Logger (12)
,
M8T-Logger (13)
Weather resistant GNSS raw data logger device in flanged lid metal enclosure
1590WCFLBK*
, based on the
RTKLIB*
ready (UBX-RXM-RAWX and UBX-RXM-SFRBX as u-blox official output messages for raw observation data) concurrent GNSS module
u-blox NEO-M8T*
Fast battery charging module (starting at 1000mA), very powerful and low noise voltage regulators (
TPS7A4533*
) and additional LED controls for log file writing activity, PPS (1 Hz time pulse when GNSS reception is OK) as well as low battery warning, separate switches for GNSS receiver and data logger (thus GNSS can be running independent from logging)
Device assembling with tough and high-grade components (for instance
Amphenol MUSB*
,
Habia Flexiform*
,
IP 65 rated switches*
and so on), GNSS antenna connector as TNC jack (more rugged)
Power supply voltage for external GNSS antenna with default 3.3 VDC, but as an upgrade option also with 5, 9 or 12 VDC possible, for instance to use already existing antenna models (depending on custom option with an extra charge of 10-20 EUR)
Example data: simultaneous raw data recording of two NEO-M8T in about 2 m distance between their antennas (NovAtel GPS-701-GG resp. Tallysman TW3400,
ZIP archive file
)
Price information
* : All prices are exclusive of VAT as well as shipping costs
Shipping from Germany abroad usually corresponds exactly to the current prices of
DHL*
Requesting
Obligation inquiry via
E-Mail*
